一、电荷、电流与电势差:三个基本量的精确定义 | Charge, Current and Potential Difference: Defining the Three Fundamentals
电学的一切都从三个基本量开始。电荷(charge)是物质携带电的性质,单位是库仑(C)。一个电子的电荷量约为 1.6 × 10⁻¹⁹ C,这是自然界中最小的电荷单位。电流(current)是电荷的定向流动速率,单位是安培(A),定义为每秒通过导体横截面的电荷量。1 A 等于 1 C/s,即 I = Q/t,其中 Q 是电荷量,t 是时间。电势差(potential difference, p.d.)是推动电荷流动的”压力差”,单位是伏特(V),定义为每单位电荷所获得的能量,即 V = W/Q。
Electricity begins with three fundamental quantities. Charge is the property of matter that carries electricity, measured in coulombs (C). One electron carries approximately 1.6 × 10⁻¹⁹ C, the smallest unit of charge found in nature. Current is the rate of flow of charge, measured in amperes (A), defined as the charge passing through a cross-section of a conductor per second. One ampere equals one coulomb per second, expressed as I = Q/t, where Q is charge and t is time. Potential difference (p.d.) is the “pressure difference” that drives charge around a circuit, measured in volts (V), defined as the energy transferred per unit charge, V = W/Q.
在 AQA AS 物理考试中,这三个定义经常以”定义题”形式出现,分值通常为 1 到 2 分。阅卷要求非常严格:电流必须提到”每秒流过的电荷量”,电势差必须提到”每单位电荷转移的能量”。缺少”per unit charge”或”per second”这类关键短语,即使意思正确也拿不到满分。因此,建议把定义背成完整句子,而不是零散的关键词。
In the AQA AS Physics exam, these three definitions frequently appear as short “define” questions worth 1 to 2 marks. The mark schemes are strict: current must be described as “charge flowing per second”, and potential difference must be described as “energy transferred per unit charge”. Missing key phrases such as “per unit charge” or “per second” loses full marks even when the meaning is correct. For this reason, it is best to memorise definitions as complete sentences rather than loose keywords.
二、欧姆定律与电阻:V = IR 背后的物理意义 | Ohm’s Law and Resistance: The Physics Behind V = IR
电阻(resistance)是导体阻碍电流通过的能力,单位是欧姆(Ω)。欧姆定律指出,在恒定温度下,流过导体的电流与两端电势差成正比,即 V = IR。这里的 R 是常数,只对欧姆导体(ohmic conductor)成立。金属导线在温度不变时近似满足欧姆定律,其 V-I 图是一条过原点的直线。
Resistance is the ability of a conductor to oppose the flow of current, measured in ohms (Ω). Ohm’s law states that, at constant temperature, the current through a conductor is directly proportional to the potential difference across it, giving V = IR. Here R is a constant, and this relationship only holds for ohmic conductors. A metal wire at constant temperature approximately obeys Ohm’s law, and its V-I graph is a straight line through the origin.
考试中常见的陷阱是把欧姆定律写成 R = V/I 就完事。这个式子本身没错,但定义题要求你说明”恒定温度”这个前提条件。为什么温度重要?因为电流通过导体时会产生热量,温度升高会使金属离子振动加剧,阻碍电子流动,电阻随之增大。所以如果题目强调”一根灯丝”或”加热后的电阻丝”,那它大概率是非欧姆元件,V = IR 中的 R 不再恒定。
A common exam trap is writing R = V/I and stopping there. The equation itself is correct, but definition questions require you to state the condition of “constant temperature”. Why does temperature matter? As current flows, the conductor heats up, and higher temperature makes metal ions vibrate more vigorously, obstructing the electron flow and increasing resistance. So when a question highlights a filament lamp or a heated wire, it is almost certainly a non-ohmic component, and R in V = IR is no longer constant.
还有一个容易混淆的点:从 V = IR 的数学形式看,R 似乎等于 V/I 的比值,但电阻并不是”由电压和电流决定”的。电阻由导体的材料、长度、横截面积和温度决定,电压和电流只是被它影响的结果。理解因果方向,比记住公式更重要。
Another confusing point: from the mathematical form V = IR, R appears to equal the ratio V/I, but resistance is not “determined by voltage and current”. Resistance depends on the material, length, cross-sectional area and temperature of the conductor; voltage and current are consequences of it. Understanding the direction of causation matters more than memorising the formula.
三、I-V 特性曲线:灯丝、二极管与固定电阻的图像对比 | I-V Characteristic Curves: Comparing Filament Lamps, Diodes and Fixed Resistors
I-V 特性曲线是 AS 物理必考的实验图像。固定电阻的 I-V 图是通过原点的直线,斜率等于 1/R。灯丝灯泡的曲线向上弯曲:电压越大,电流越大,灯丝温度越高,电阻越大,所以斜率逐渐变小。二极管只允许电流单向通过:正向偏置时电流随电压迅速增大,反向偏置时电流几乎为零,直到达到击穿电压。
The I-V characteristic curve is an essential experimental graph in AS Physics. A fixed resistor gives a straight line through the origin with slope 1/R. The filament lamp curve bends upwards: as voltage increases, current increases, the filament heats up, resistance rises, and the slope gradually decreases. A diode only allows current to flow in one direction: forward biased, current rises rapidly with voltage; reverse biased, current is almost zero until the breakdown voltage is reached.
画图时要注意三个细节。第一,电流和电压的坐标轴不能标反,电流永远在纵轴(y 轴)。第二,灯丝曲线要画成平滑弯曲,不能画成直线或折线。第三,二极管的曲线要贴着坐标轴走,正向部分几乎竖直,反向部分几乎水平,这样才符合评分标准对”形状”的要求。
Three details matter when drawing these graphs. First, the axes must not be swapped: current is always on the vertical (y) axis. Second, the filament curve must be smooth and curved, not straight or kinked. Third, the diode curve should hug the axes, with the forward region almost vertical and the reverse region almost horizontal, matching the shape required by the mark scheme.
从图像读取电阻是高频考点。灯丝在某一工作点的电阻 = 该点的 V 值除以 I 值,即用该点与原点的连线斜率(而不是切线斜率)。例如工作点 V = 4 V、I = 0.2 A 时,R = 4/0.2 = 20 Ω。很多学生误用切线斜率,导致答案错误。
Reading resistance from a graph is a high-frequency question. The resistance of a lamp at a given operating point equals V divided by I at that point, which is the slope of the line joining that point to the origin (not the tangent slope). For example, at V = 4 V and I = 0.2 A, R = 4/0.2 = 20 Ω. Many students wrongly use the tangent slope and get the wrong answer.
四、电阻率:长度与横截面积如何决定电阻 | Resistivity: How Length and Cross-Sectional Area Determine Resistance
导体的电阻不是凭空出现的,它与材料本身的性质和几何尺寸有关。电阻率(resistivity, ρ)是材料的固有属性,单位是欧姆米(Ω·m)。电阻与长度的关系式为 R = ρL/A,其中 L 是导体长度,A 是横截面积。这个公式说明:导线越长电阻越大,导线越粗电阻越小。
The resistance of a conductor does not appear out of nowhere; it depends on the material’s intrinsic properties and its geometry. Resistivity (ρ) is an intrinsic property of the material, measured in ohm-metres (Ω·m). Resistance relates to these quantities through R = ρL/A, where L is the length and A is the cross-sectional area. The formula shows that a longer wire has greater resistance, while a thicker wire has smaller resistance.
理解 R = ρL/A 的关键在于”为什么”。电子在金属中流动时会与晶格中的离子碰撞。导线越长,电子碰撞的次数越多,阻力越大。横截面积越大,同一时间能通过的电子通道越多,相当于高速公路多了几条车道,阻力自然变小。温度升高时离子振动加剧,碰撞更频繁,所以金属的电阻率随温度升高而增大。
The key to understanding R = ρL/A is the “why”. Electrons moving through a metal collide with the lattice ions. A longer wire means more collisions and greater resistance. A larger cross-sectional area provides more channels for electrons, like adding lanes to a motorway, so resistance decreases. At higher temperatures ions vibrate more and collisions become more frequent, so the resistivity of metals increases with temperature.
计算题中有一个经典陷阱:导线被拉伸。假设一根导线被均匀拉伸到原来长度的 2 倍,体积不变,横截面积变为原来的 1/2,根据 R = ρL/A,电阻变为原来的 4 倍。类似的,如果把导线对折后并联使用,长度减半、面积翻倍,电阻变为原来的 1/4。这类”变形题”在 2019 年前后的 AQA 真题中反复出现,务必先判断 L 和 A 如何变化,再代入公式。
There is a classic trap in calculation questions: stretching a wire. If a wire is uniformly stretched to twice its original length, its volume stays constant, so its cross-sectional area halves. From R = ρL/A, the resistance becomes four times larger. Similarly, if a wire is folded in half and used in parallel, length halves and area doubles, giving one quarter of the original resistance. These “deformation questions” recur in AQA papers from around 2019 onwards; always work out how L and A change before substituting into the formula.
五、串联与并联电路:电流、电压与电阻的三条规则 | Series and Parallel Circuits: Three Rules for Current, Voltage and Resistance
串联电路(series circuit)中,所有元件首尾相连,电流处处相同。总电阻等于各电阻之和:R_total = R1 + R2 + R3。电源电压在各元件之间分配,电压之比等于电阻之比。并联电路(parallel circuit)中,各支路两端电压相同,总电流等于各支路电流之和:I_total = I1 + I2 + I3。总电阻的倒数等于各支路电阻倒数之和:1/R_total = 1/R1 + 1/R2 + 1/R3。
In a series circuit, components are connected end to end and the current is the same everywhere. The total resistance is the sum of the individual resistances: R_total = R1 + R2 + R3. The supply voltage is shared between the components in proportion to their resistances. In a parallel circuit, every branch has the same voltage across it, and the total current is the sum of the branch currents: I_total = I1 + I2 + I3. The reciprocal of the total resistance equals the sum of the reciprocals of the branch resistances: 1/R_total = 1/R1 + 1/R2 + 1/R3.
一个重要的直觉:并联增加通路,总电阻反而变小。两个 10 Ω 电阻并联,总电阻只有 5 Ω。这是因为并联后电子有了两条路可以走,等效于”加宽了河道”。在 AQA 考试中,并联电阻的计算经常和电功率结合:灯泡变亮还是变暗,取决于实际功率 P = V²/R 的变化,而不是简单地看电阻大小。
A key intuition: adding branches in parallel actually reduces total resistance. Two 10 Ω resistors in parallel give only 5 Ω. This is because electrons gain two paths, equivalent to widening the river channel. In AQA exams, parallel resistance calculations are often combined with electrical power: whether a lamp brightens or dims depends on the change in actual power P = V²/R, not simply on resistance values.
混合电路(既有串联又有并联)是区分 A 等与 B 等的分水岭题目。解题口诀是”先并后串”:先把并联部分合成一个等效电阻,再处理串联部分。画等效电路图能大幅降低出错率。注意电流表要串联接入、电压表要并联接入,这是实验题和电路识别题的常客。
Mixed circuits (containing both series and parallel sections) are the dividing line between A-grade and B-grade answers. The solving rule is “parallel first, then series”: first combine the parallel section into one equivalent resistance, then handle the series part. Drawing an equivalent circuit diagram greatly reduces errors. Remember that ammeters connect in series and voltmeters connect in parallel; this appears constantly in practical and circuit-identification questions.
六、电动势与内阻:真实电池为什么会”掉压” | EMF and Internal Resistance: Why Real Cells Drop Voltage
理想电池的端电压永远等于电动势,但真实电池内部有内阻(internal resistance, r)。电动势(EMF, E)是电池把化学能转化为电能的本领,等于开路时(没有电流时)电池两端的电压。当电路中有电流流过时,电流也要通过电池内部的内阻,在内阻上产生电压降 Ir,所以端电压 V = E – Ir。
An ideal cell always delivers its EMF across its terminals, but a real cell has internal resistance (r). The electromotive force (EMF, E) is the energy converted from chemical to electrical per unit charge, equal to the terminal voltage when the cell is on open circuit (no current). When current flows, it must pass through the internal resistance inside the cell, creating a voltage drop Ir, so the terminal voltage becomes V = E – Ir.
这个公式是 Unit 5 电学的核心。整理成 E = V + Ir 或 E = I(R + r),其中 R 是外电路电阻。考试常考两类问题:第一类,已知 E、r 和外电阻 R,求电流 I = E/(R + r) 和端电压 V = IR;第二类,用伏安法测量 E 和 r,画出 V-I 图,纵轴截距就是 E,斜率的绝对值就是 r。
This equation is the core of Unit 5 electricity. It can be rearranged as E = V + Ir or E = I(R + r), where R is the external circuit resistance. Two question types dominate: first, given E, r and external resistance R, find current I = E/(R + r) and terminal voltage V = IR; second, use the voltmeter-ammeter method to measure E and r, plotting a V-I graph where the vertical intercept gives E and the magnitude of the slope gives r.
短路电流(short-circuit current)也是一个高频概念:当外电阻 R = 0 时,I = E/r,这是电池能提供的最大电流。汽车电池内阻极小(约 0.01 Ω),所以短路时电流可以高达数百安培,非常危险。理解这一点有助于回答”为什么电池短路会发热甚至起火”的应用题。
Short-circuit current is another high-frequency concept: when external resistance R = 0, I = E/r, the maximum current the cell can supply. A car battery has very low internal resistance (about 0.01 Ω), so a short circuit can drive hundreds of amperes, which is extremely dangerous. Understanding this helps answer application questions such as “why does a shorted battery heat up or even catch fire”.
七、电势分配器:用一个电位器把电压”切开” | Potential Dividers: Using Resistors to Split Voltage
电势分配器(potential divider)由两个串联电阻组成,用来从电源电压中取得所需的较小电压。输出电压 V_out = V_in × R2/(R1 + R2),其中 R2 是输出端并联的那个电阻。如果把 R2 换成可变电阻或光敏电阻(LDR),输出电压就会随环境条件变化,这正是传感器电路的基本原理。
A potential divider consists of two series resistors used to obtain a smaller voltage from the supply. The output voltage is V_out = V_in × R2/(R1 + R2), where R2 is the resistor across the output terminals. If R2 is replaced by a variable resistor or a light-dependent resistor (LDR), the output voltage changes with environmental conditions; this is the basic principle of sensor circuits.
传感器电路的经典模型是 LDR 分压器加比较器。光线变暗时,LDR 电阻增大,分得更多电压,输出端电压升高,触发电路启动路灯。热敏电阻(thermistor)同理:温度升高时 NTC 热敏电阻阻值下降,输出端电压随之改变,可用于温控电路。考试时先判断”条件变化使哪个电阻变、变大还是变小”,再用分压公式定性分析输出电压的升降。
The classic sensor model is an LDR divider plus a comparator. In dim light the LDR resistance rises, it takes more of the voltage, the output voltage increases, and the circuit switches on street lights. A thermistor works the same way: an NTC thermistor’s resistance falls as temperature rises, changing the output voltage, which enables temperature-control circuits. In the exam, first decide which resistor changes and whether it increases or decreases, then use the divider formula to analyse qualitatively how the output voltage moves.
分压器的计算陷阱在于搞混哪个电阻是 R2。输出电压永远取”输出端所在支路的电阻”分到的电压。画图时把输出端标出来,看它跨在哪个电阻两端,那个电阻就是公式里的 R2。另外注意:分压器公式只适用于输出端没有负载的情况,如果输出端接了一个电阻,就变成了并联电路,需要重新计算。
The calculation trap with dividers is mixing up which resistor is R2. The output voltage is always the voltage across the resistor that spans the output terminals. Mark the output terminals on the diagram: the resistor they straddle is R2 in the formula. Also note that the divider formula only applies when nothing is connected across the output; if a load resistor is attached, the circuit becomes a parallel combination and must be recalculated.
八、电功率与能量:P = VI 与千瓦时的实际意义 | Electrical Power and Energy: P = VI and the Meaning of the Kilowatt-Hour
电功率(power)是电能转化为其他形式能量的速率,单位是瓦特(W)。基本公式 P = VI,结合欧姆定律可以推出 P = I²R 和 P = V²/R。这三个公式要按题目给出的已知量选用:已知电流和电阻用 P = I²R,已知电压和电阻用 P = V²/R。能量则是功率乘以时间:E = Pt = VIt。
Electrical power is the rate at which electrical energy is converted into other forms, measured in watts (W). The basic formula is P = VI, and combining it with Ohm’s law gives P = I²R and P = V²/R. Choose the version that matches the given quantities: use P = I²R when current and resistance are known, and P = V²/R when voltage and resistance are known. Energy is power multiplied by time: E = Pt = VIt.
千瓦时(kWh)是电费单上的能量单位,1 kWh 等于功率 1 kW 的电器工作 1 小时消耗的能量,换算成焦耳是 1 kWh = 3.6 × 10⁶ J。电费计算题的模式很固定:先算电器功率(kW),再乘以使用时间(h)得到千瓦时数,最后乘以电价。注意把 W 换算成 kW 时除以 1000,这是最容易丢分的一步。
The kilowatt-hour (kWh) is the energy unit on electricity bills. One kWh is the energy consumed by a 1 kW appliance running for 1 hour, equal to 3.6 × 10⁶ J in joules. Electricity bill questions follow a fixed pattern: find the appliance power in kW, multiply by the time in hours to get kWh, then multiply by the tariff. Remember to divide by 1000 when converting watts to kilowatts; this is the easiest step to lose marks on.
效率(efficiency)概念也常与功率结合:效率 = 有用输出功率/输入功率 × 100%。电动机把电能转化为机械能的同时,内阻发热是不可避免的损耗。回答”为什么效率不是 100%”时,标准答法是”部分能量以热的形式耗散到环境中”,并点名内阻或摩擦。
Efficiency often combines with power: efficiency = useful output power / input power × 100%. While a motor converts electrical energy into mechanical energy, heat generated in its internal resistance is an unavoidable loss. When answering “why is efficiency not 100%”, the standard response is that “some energy is dissipated as heat to the surroundings”, naming internal resistance or friction specifically.

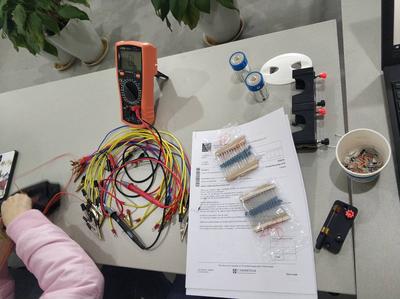

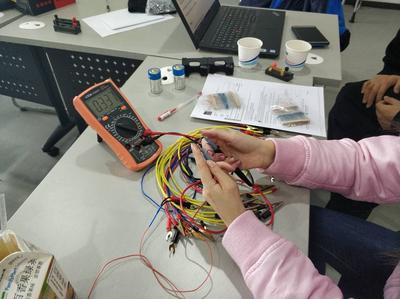

九、实验技能:如何测量电动势和内阻 | Practical Skills: Measuring EMF and Internal Resistance in the Lab
AQA AS 物理的实践考核(required practical)中,测量电池电动势和内阻是经典实验。标准接法:电池、电流表、可变电阻串联,电压表并联在电池两端。改变可变电阻的阻值,记录多组电压和电流读数,画出 V-I 图。注意电流从大到小取至少 6 组数据,覆盖尽量宽的电流范围。
Measuring the EMF and internal resistance of a cell is a classic required practical in AQA AS Physics. The standard set-up: the cell, an ammeter and a variable resistor are connected in series, with a voltmeter across the cell. Vary the resistance and record several pairs of voltage and current readings, then plot a V-I graph. Take at least six readings from high to low current, covering as wide a range as possible.
数据处理的关键是”两点定直线”。V = E – Ir 是线性方程,y 轴截距是 E,斜率是 -r。画直线时要用直尺,让数据点均匀分布在直线两侧,不要强行穿过每一个点。计算斜率时选两个相距较远的点,避免用原点,因为原点通常不在直线上。系统误差方面,电压表的内阻会分流少量电流,导致测出的 E 略小于真实值。
The key to data analysis is “two points define the line”. V = E – Ir is a linear equation: the y-intercept is E and the slope is -r. Draw the best-fit straight line with a ruler so data points are evenly spread on both sides, rather than forcing the line through every point. When calculating the slope, choose two points far apart and avoid the origin, since the origin usually does not lie on the line. Regarding systematic error, the voltmeter’s internal resistance diverts a small current, making the measured E slightly smaller than the true value.
实验评估题(evaluation)中,常见的改进建议包括:使用数字电压表提高读数精度、重复测量取平均值、避免电流过大导致电池温度升高改变内阻、以及更换新电池避免内阻随放电而增大。写改进建议时一定要和具体误差来源挂钩,泛泛的”提高精度”得不到高分。
In evaluation questions, common improvements include: using a digital voltmeter for better reading precision, repeating measurements and averaging, avoiding excessive current that heats the cell and changes its internal resistance, and using a fresh cell so the internal resistance does not grow as the cell discharges. Improvement suggestions must link to a specific error source; a vague “improve accuracy” earns few marks.
十、考试常见陷阱:误区与评分标准语言 | Common Exam Traps: Misconceptions and Mark Scheme Language
第一个高频误区是把”电势差”和”电动势”混为一谈。电势差是某段电路两端的电压,电动势是电源本身的属性;电动势等于外电路电势差与内阻压降之和。第二个误区是认为电流”用完了”会变小:串联电路中电流处处相同,能量不是被电流”消耗”,而是电势能在元件上转化为热能。
The first high-frequency misconception is confusing potential difference with EMF. Potential difference is the voltage across a section of the circuit; EMF is a property of the source itself, equal to the sum of the external p.d. and the internal drop. The second misconception is thinking current gets “used up” and diminishes: in a series circuit the current is the same everywhere; energy is not consumed by the current, rather electrical potential energy is converted to heat in the components.
第三个误区出现在定义题:回答”电流是什么”时写”电荷的流动”而不写”速率”或”每秒”,就会被扣分。AQA 评分标准对定义的措辞极其敏感,关键词缺一不可。第四个误区是单位换算:计算电阻率时面积要用平方米(m²),而不是平方毫米;1 mm² = 1 × 10⁻⁶ m²。每道计算题代入前先检查单位。
The third misconception appears in definition questions: answering “what is current” with “flow of charge” without mentioning “rate” or “per second” loses marks. AQA mark schemes are extremely sensitive to the wording of definitions; every keyword matters. The fourth misconception is unit conversion: when calculating resistivity, area must be in square metres (m²), not square millimetres; 1 mm² = 1 × 10⁻⁶ m². Check units before substituting in every calculation.
最后一个提醒关于有效数字。AQA 计算题通常要求答案保留与题目数据一致的有效数字位数(一般是 2 到 3 位)。如果题目给出 12 V 和 4.0 Ω,答案写 3.000000 A 反而可能被扣分。平时练习就养成”看数据定精度”的习惯,考试时才能自然反应。
A final reminder about significant figures. AQA calculations usually require answers to the same number of significant figures as the data given, typically 2 to 3. If the question provides 12 V and 4.0 Ω, writing 3.000000 A can actually lose marks. Build the habit of matching the precision of the data during practice so it becomes natural in the exam.
Summary | 总结
AQA AS 物理电学部分可以归纳为一条主线:从电荷、电流和电势差三个基本定义出发,先掌握欧姆定律和 I-V 特性曲线,再用电阻率公式理解几何因素,接着用串联并联规则和分压器分析电路,最后用 E = V + Ir 把真实电池的内阻纳入模型。实验部分重点是伏安法测电动势和内阻的作图与误差分析。
AQA AS Physics electricity can be summarised in one main thread: start from the three definitions of charge, current and potential difference; master Ohm’s law and I-V characteristic curves; use the resistivity formula to understand geometrical factors; analyse circuits with the series-parallel rules and potential dividers; and finally bring real cells into the model with E = V + Ir. The practical section focuses on plotting and error analysis in the voltmeter-ammeter measurement of EMF and internal resistance.
刷题建议:优先做 AQA 2019 年以来的真题,重点练习定义题、V-I 图读图题、导线变形题和电费计算题四类高频题型。每做完一道题,对照评分标准检查自己的措辞和有效数字,把丢分原因记在错题本上。电学部分的公式不多,但每个公式的适用条件和物理含义必须清晰,这是拿高分的根本。
Practice advice: prioritise genuine AQA papers from 2019 onwards, focusing on the four high-frequency question types: definitions, V-I graph reading, wire deformation and electricity bill calculations. After each question, check your wording and significant figures against the mark scheme and record the reason for lost marks in an error log. Electricity has few formulas, but the conditions of applicability and physical meaning of each one must be crystal clear; that is the foundation of a high grade.
